01
Load the Stencil
Place the workpiece into the cleaning chamber.
SMT Cleaning Solution
BC320 Stencil
Cleaning Machine
Automated aqueous stencil cleaning system with DI water rinsing, precision filtration and hot-air drying for SMT production.
- 737 × 737 mmMax. Stencil Size
- 60 L + 60 LWash / Rinse Tanks
- 1 μmFiltration
- Wash · Rinse · DryIntegrated Process
BC320Designed for aqueous stencil cleaning, DI water rinsing and hot-air drying.
4–5 kg/cm²Wash / rinse pressure
0–90°CHot-air temperature
28 kWRated power
730 kgNet weight

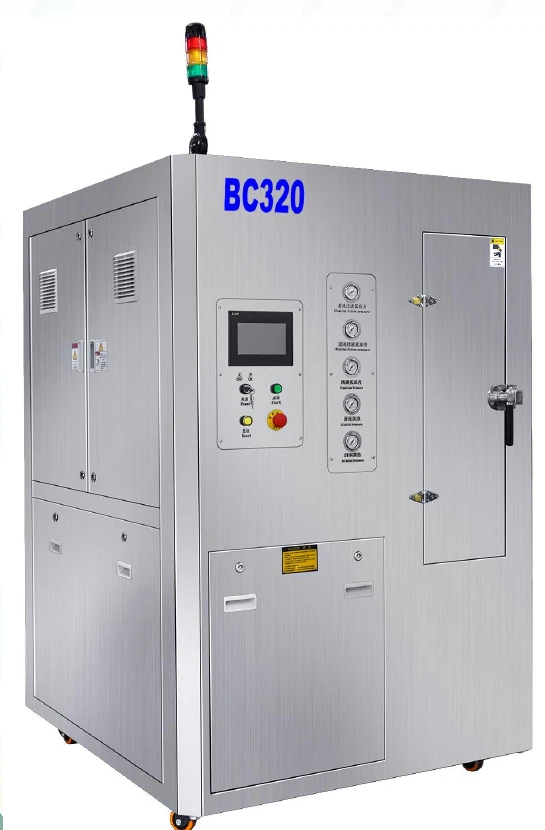

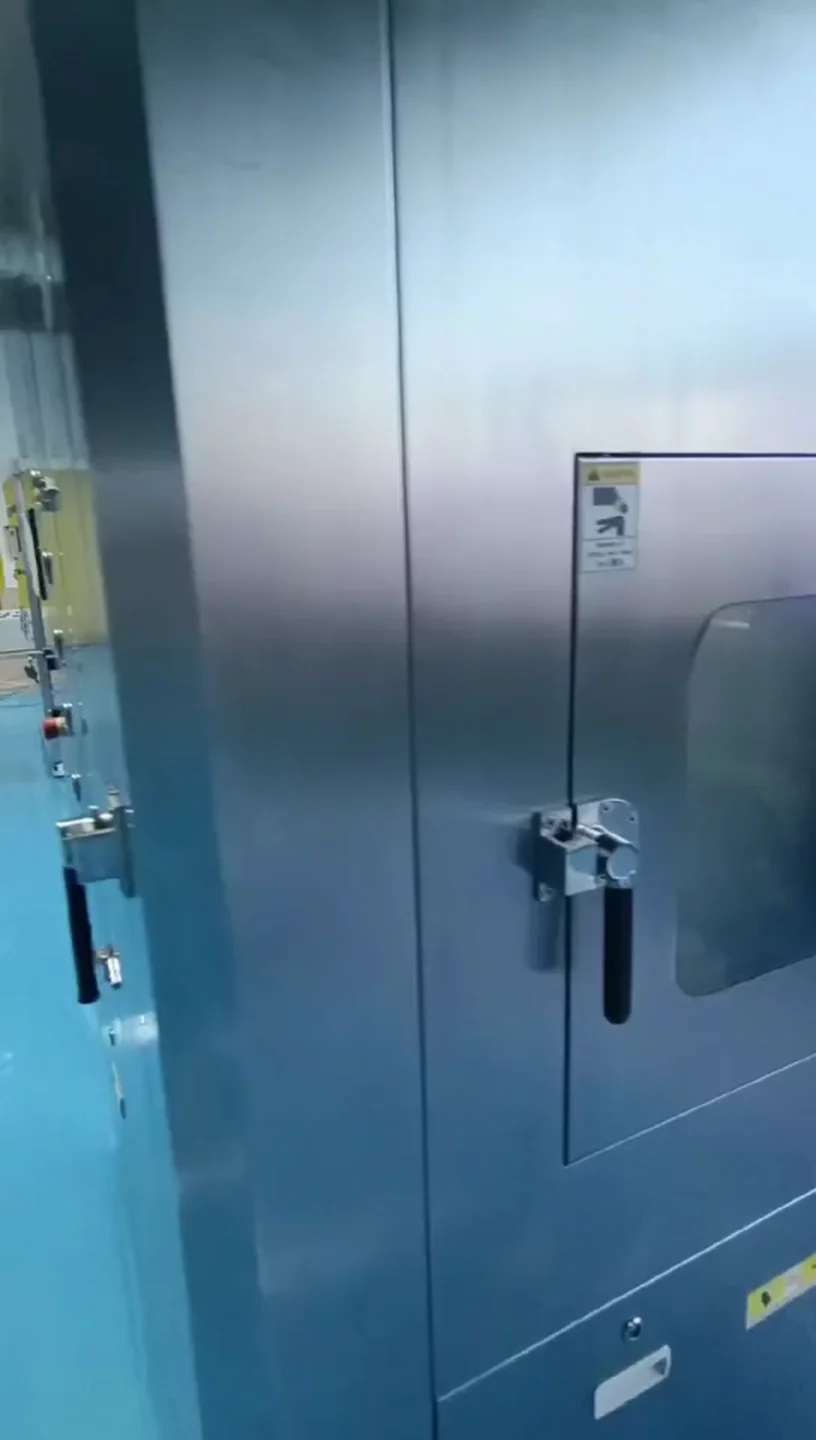

Real BC320 machine
Product Overview
Automated Stencil Cleaning for SMT Production
BC320 integrates aqueous cleaning, DI water rinsing and hot-air drying into one automated process for common SMT cleaning tasks.
- Solder Paste Stencils
- Red Glue Stencils
- Copper Stencils
- Misprinted PCBs
- Squeegees
- PCBA
Integrated Process
A Clear, Repeatable Cleaning Sequence
A five-step workflow brings aqueous washing, DI water rinsing and hot-air drying together in one BC320 cycle.
02
Aqueous Wash
Water-based cleaning liquid is sprayed onto the stencil.
03
DI Water Rinse
DI water rinses remaining cleaning residues.
04
Hot Air Dry
Hot-air drying removes residual moisture after rinsing.
05
Unload
Remove the cleaned, dried stencil after the cycle.
Working Principle
Two Media Loops, One Integrated Process
Wash liquid and DI water follow separate circulation paths, each with 1 μm filtration and recovery back to its respective tank.
WASH LOOP
- Cleaning liquid
- Pump
- Spray nozzles
- Stencil
- 1 μm filtration
- Liquid recovery
RINSE LOOP
- DI water
- Pump
- Spray nozzles
- Stencil
- 1 μm filtration
- Water recovery
↗Hot Air Drying follows the wash and DI water rinse stages.
Engineered Cleaning System
Key Design Features of the BC320
The BC320 combines its cleaning, rinse, filtration, drying and control functions in one machine platform.
Fixed Spray Rods
Four fixed cleaning spray rods support the wash process.
Fixed Air Knives
Four fixed air knives are part of the machine design.
Moving Stencil Mechanism
The stencil moves during cleaning as part of the mechanism.
Real-Time Filtration
Cleaning liquid and DI rinse water use 1 μm filtration.
Separate Media Systems
Wash liquid and DI water follow separate process paths.
Hot-Air Drying
Hot air blow drying is specified up to 90°C.
PLC Control
PLC-controlled cleaning procedures are operated from the panel.
Touch-Screen Interface
English color touch-panel operational interface.
Automatic Liquid Handling
Wash liquid and rinse water can be added and discharged automatically.
Observation Window
A large right-side observation window makes the process visible.

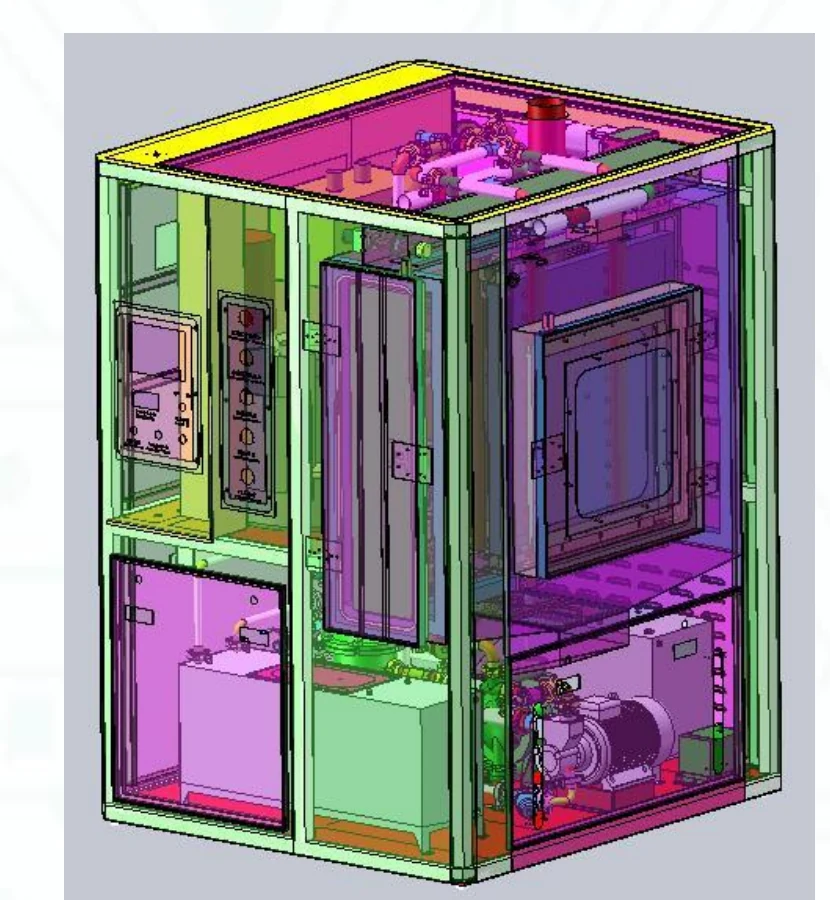

Machine Structure
Three Main Process Modules
Wash
Water-based cleaning liquid is sprayed onto the stencil. Cleaning time and liquid temperature can be adjusted.
Rinse
DI water rinses remaining cleaning residues. Rinse time and water temperature can be configured.
Dry
Hot-air drying removes residual moisture after rinsing. Drying time and hot-air temperature can be adjusted.
Internal Components
Inside the BC320
Images below are sourced from the BC320 product introduction and show key internal assemblies.

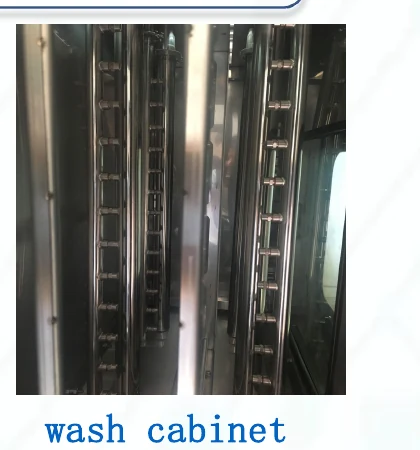

Wash Cabinet
Houses the cleaning area for the workpiece during the wash process.

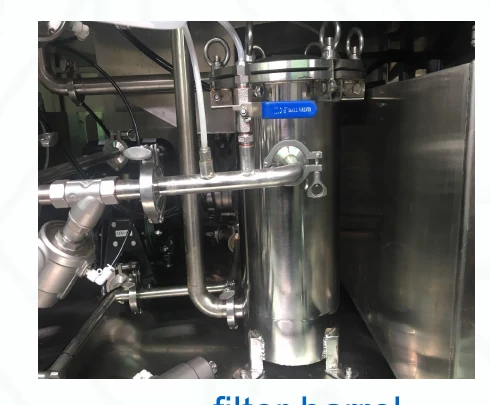

Filter Barrel
Provides fine filtration for circulating cleaning and rinse media.

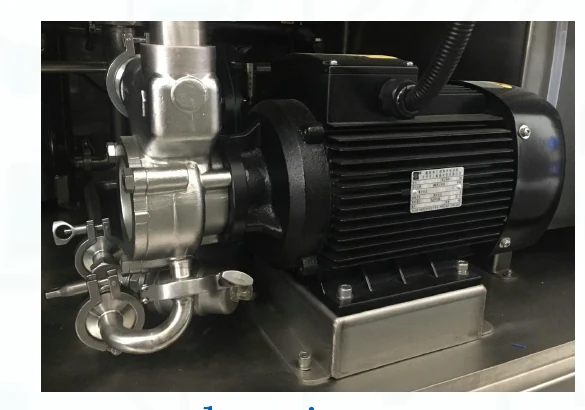

Electric Pump
Provides circulation pressure for the cleaning process.
Liquid Tank
Stores cleaning liquid used during the wash process.

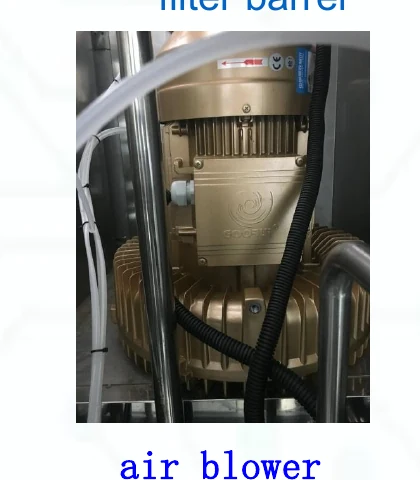

Air Blower
Supports the machine drying process.

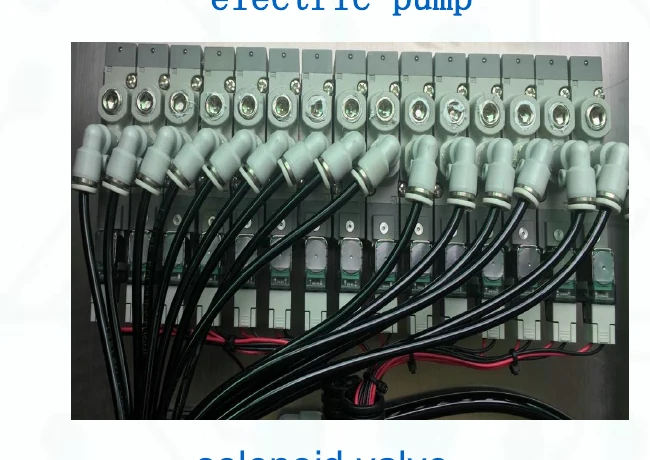

Solenoid Valve
Part of the machine's controlled fluid handling system.

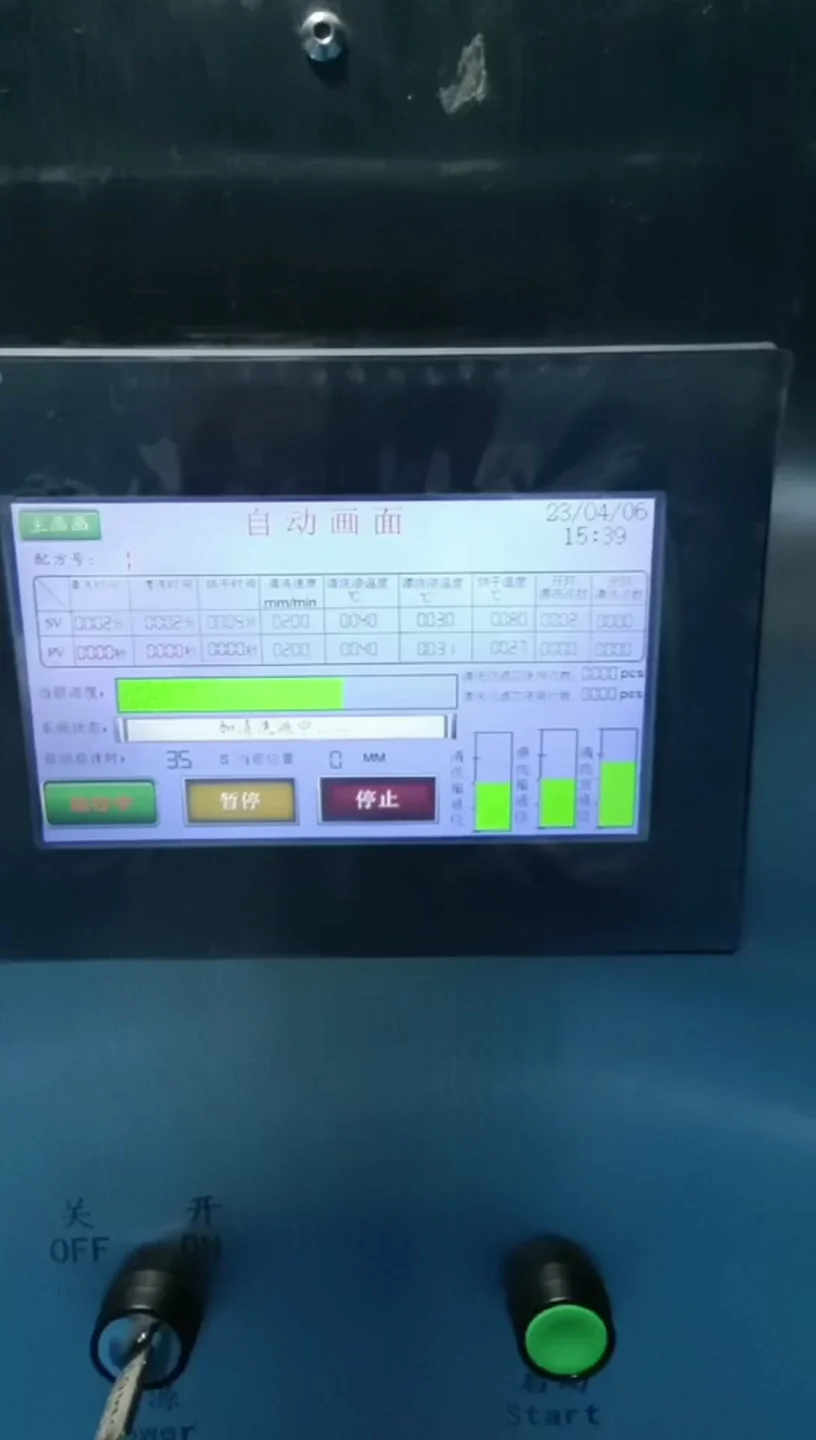

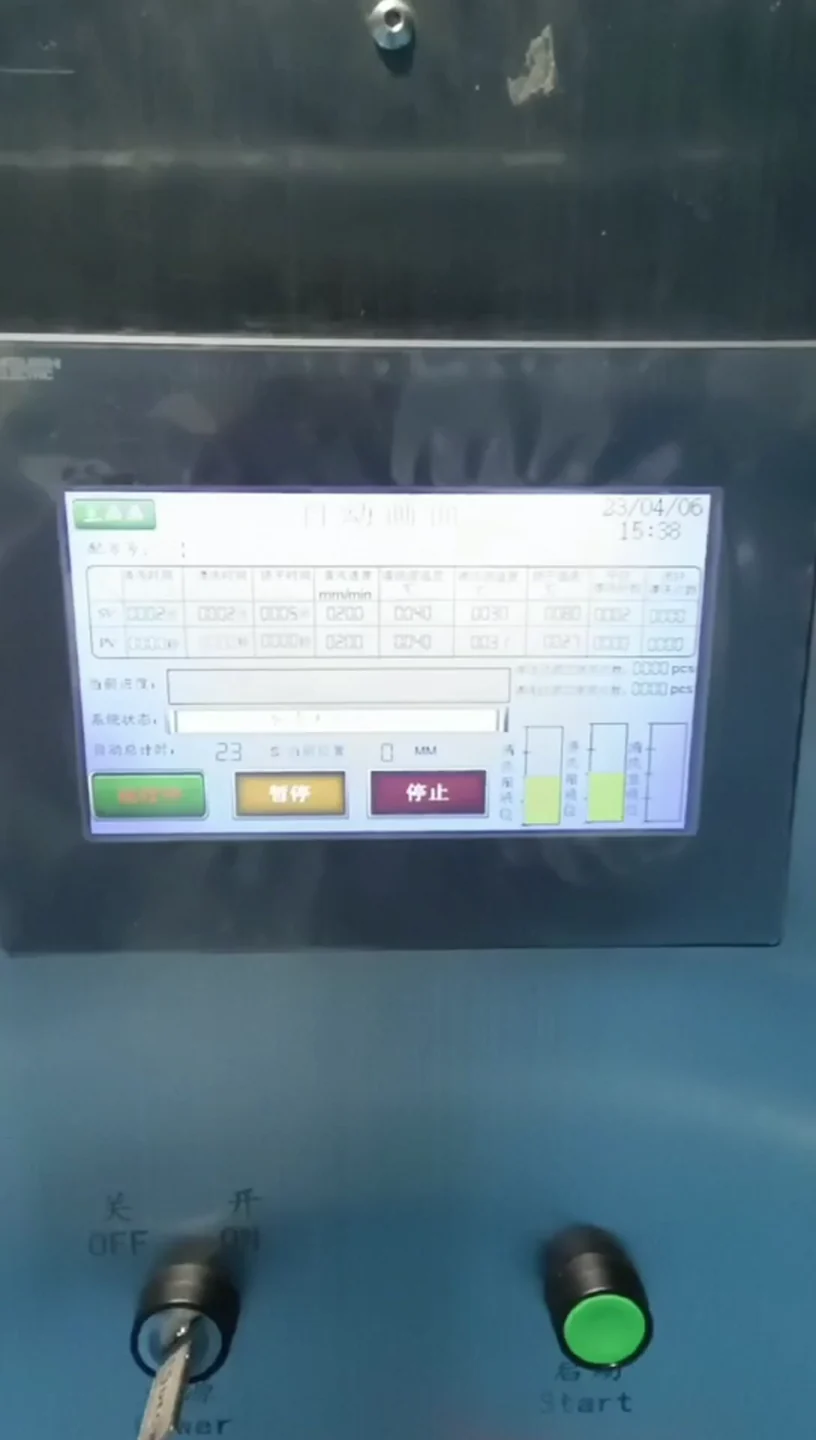

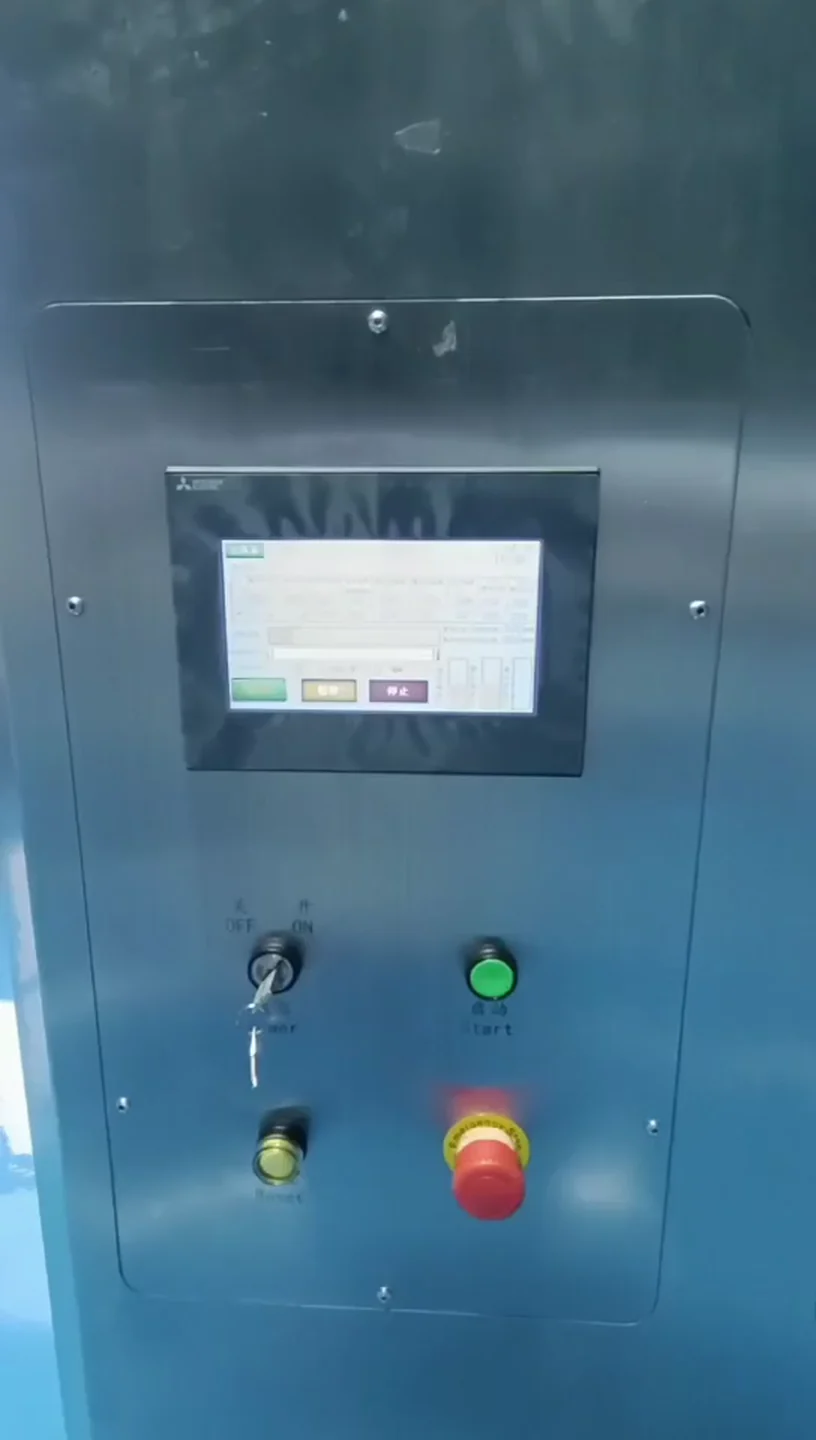

PLC & Touch-Screen Control
Set the Process Parameters at the Panel
The BC320 uses an English color touch-panel interface with PLC procedure control. Its settings and pressure monitoring are presented at the machine.
- Adjustable wash time
- Adjustable cleaning-liquid temperature
- Adjustable rinse time
- Adjustable rinse-water temperature
- Adjustable drying time
- Adjustable hot-air temperature
- Wash and rinse pressure monitoring
- PLC-controlled cleaning cycle
Applications
One Cleaning Platform for Multiple SMT Applications
BC320 is presented for the following SMT cleaning applications in the supplied product information.
Solder Paste Stencil
Red Glue Stencil
Copper Stencil
Misprinted PCB
Squeegee
PCBA
Cleaning Results
Before and After Examples
Comparison images are reproduced from the BC320 product introduction without alteration.

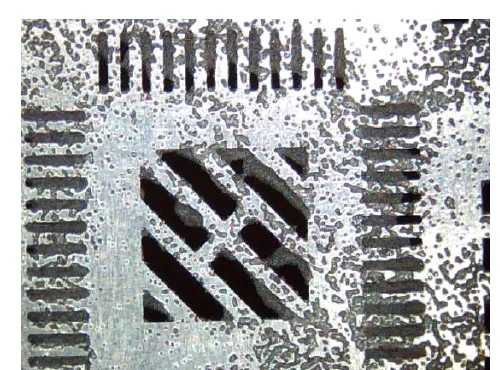

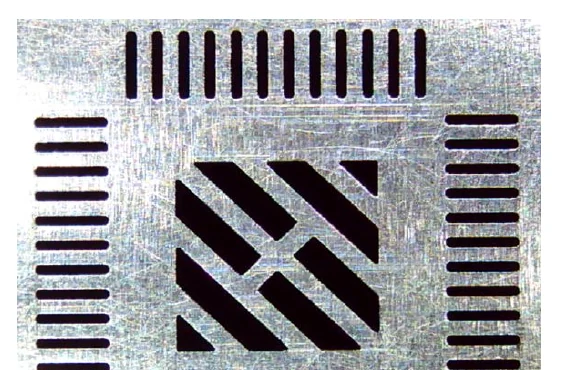

Solder Paste Stencil
Before / After

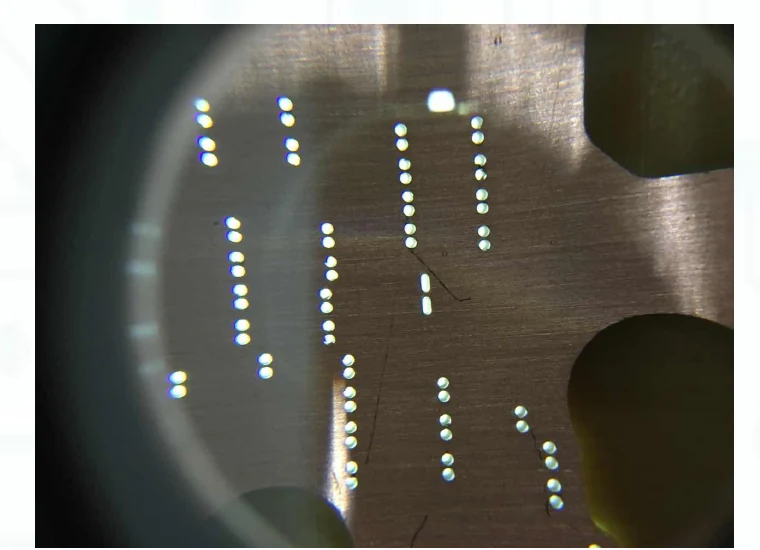

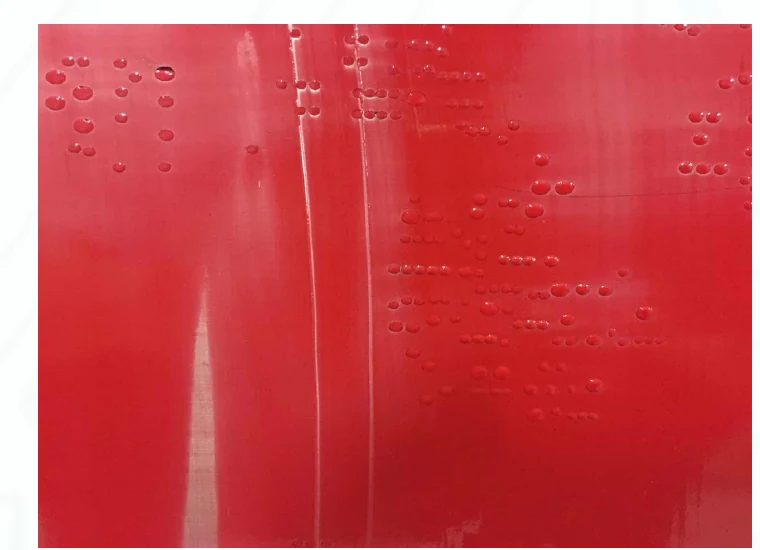

Copper Stencil with Red Glue
Before / After

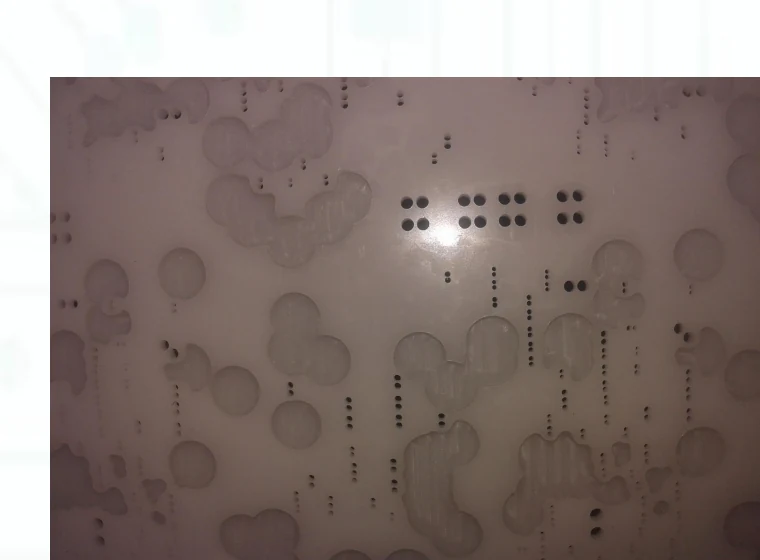

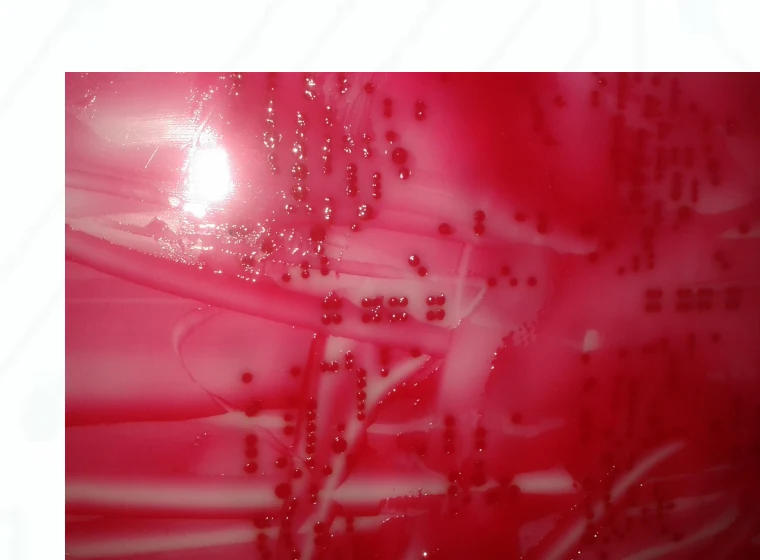

Resin Stencil with Red Glue
Before / After
Real Machine Video
BC320 Machine Demonstration
See the BC320 machine, cleaning chamber, touch-screen interface and operating process in this real-machine demonstration.
- Original supplied MP4, retained for direct playback.
- Video is not set to autoplay, loop or preload the full file.
- Poster image is a real frame extracted from this demonstration.
Technical Specifications
BC320 Machine Specifications
Values below are organized from the supplied BC320 Machine Spec page.
| Item | Specification |
|---|---|
| Model | BC320 |
| Maximum stencil size | 737 × 737 × 40 mm |
| Cleaning liquid tank | 60 L |
| DI water tank | 60 L |
| Wash time (solder paste stencil) | 3–5 min |
| Rinse time (solder paste stencil) | 1–2 min |
| Drying time (solder paste stencil) | 3–6 min |
| Wash / rinse pressure | 4–5 kg/cm² |
| Cleaning liquid | Water-based cleaning liquid |
| Rinse medium | DI water |
| Drying method | Hot air blow drying |
| Cleaning liquid temperature | 0–60°C |
| Hot air temperature | 0–90°C |
| Cleaning liquid heater | 9 kW |
| DI water heater | 9 kW |
| Hot air heater | 6 kW |
| Cleaning / rinse filtration | 1 μm / 1 μm |
| Power supply | AC 380 V, 50/60 Hz |
| Rated power | 28 kW |
| Compressed air | 0.5–0.7 MPa |
| Net weight | 730 kg |
| Machine dimensions | 1300 × 1400 × 1950 mm |
FAQ
BC320 Buyer Questions
Answers below are limited to the supplied product introduction and machine specification.
What can the BC320 clean?
It is presented for SMT solder paste stencils, red glue stencils, red glue copper stencils, solder paste misprinted PCBs, squeegees and PCBA.
What is the maximum stencil size?
The maximum stencil size is 737 × 737 × 40 mm.
Does the BC320 use DI water?
Yes. DI water is specified as the rinse medium, with a 60 L DI water tank.
How is the stencil dried?
The machine specification lists hot air blow drying, with a hot-air temperature range of 0–90°C.
What filtration precision does the machine use?
Cleaning and rinse filtration are both specified as 1 μm.
What utilities are required for installation?
The machine is specified for AC 380 V, 50/60 Hz power, rated at 28 kW, and compressed air at 0.5–0.7 MPa. It uses water-based cleaning liquid and DI water.
