Southern Machinery
Vertical Insertion Machine
An automated radial THT component insertion solution for PCB assembly, built around taped component feeding, controlled positioning and in-line production support.
- Radial taped component insertion
- PCB size from 50 x 50 to 400 x 300 mm
- 10 recommended feeder stations
- Adjustable lead bend angle of 10 to 15 degrees
Product familyRadial insertion platform
ApplicationRadial THT insertion for PCB assembly
PackageVertical taped components
PCB capacityUp to 400 x 300 mm
EvaluationComponent, package and PCB review
THT
Designed to automate the insertion step for radial, vertical taped components in through-hole PCB production.
Product overview
Controlled insertion for radial component assembly
The S3000 platform feeds taped components, brings each part to the insertion position, moves the PCB to programmed coordinates and completes insertion into the board. The supplied manual describes an X-Y worktable, component transfer mechanism, insertion head and lead cutting and bending base as part of the process.
- 01 FeedPrepared taped components enter the programmed feed path.
- 02 PositionThe PCB moves to the insertion coordinate.
- 03 InsertThe insertion head places the component into the PCB holes.
- 04 FinishLeads are cut and bent to secure the inserted component.
Machine operation
See the Vertical Insertion Machine in Operation

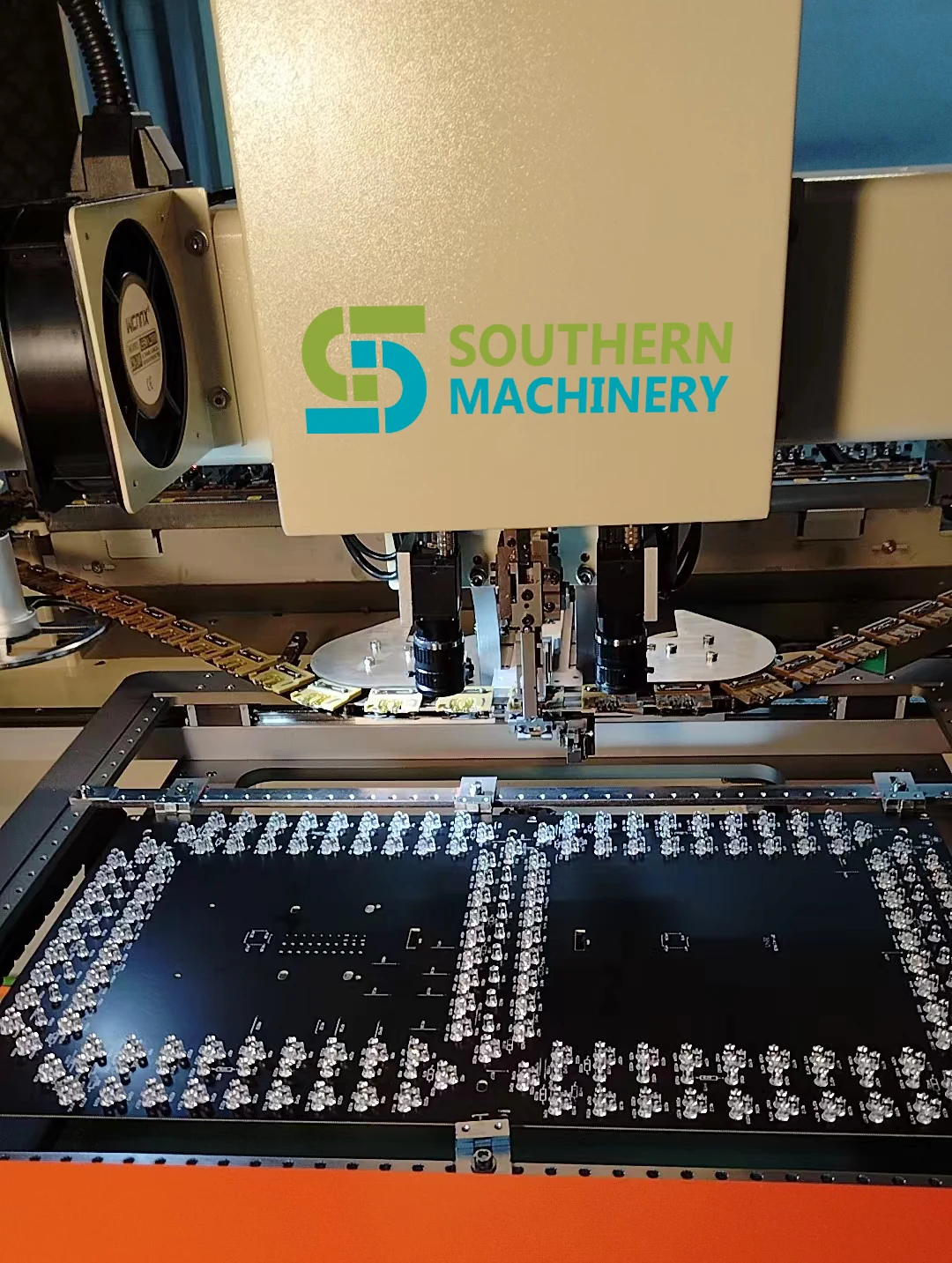

A supplied factory-operation video showing the insertion head working on a populated PCB. Playback is manual and begins only when the visitor chooses to play it.
Factory operation footageManual playback
Key features
Built around a repeatable radial insertion process
The following points reflect the supplied S3000 product material and manual. Final machine configuration should follow a review of the component, package and PCB design.
02
Servo and lead screw assembly

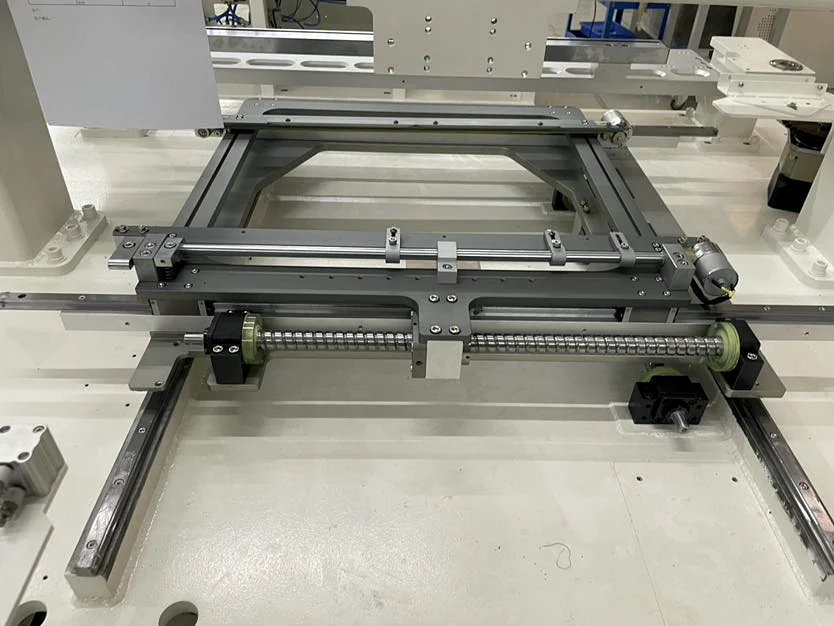

The supplied materials describe a servo motor and lead screw insertion unit for controlled component handling and movement.
03
PCB coordinate positioning

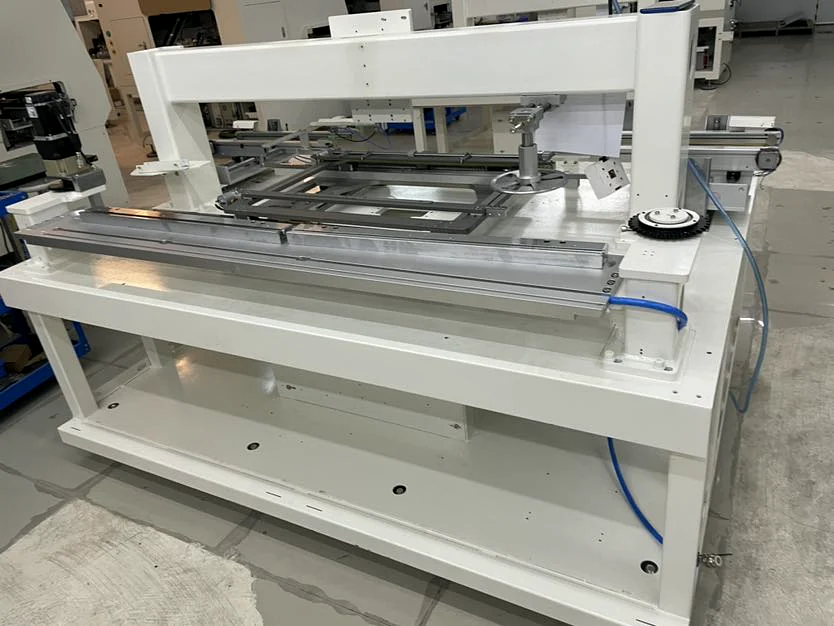

The supplied manual describes an X-Y worktable that moves the PCB to the programmed insertion position.
04
Lead cut and bend stage
The mechanism described in the manual cuts, bends and fixes the leads after they enter the PCB holes.
05
Feeder station planning
The S3000 PDF lists 10 stations as the recommended number of feeder stations for the standard specification.
06
Project evaluation
Component package, dimensional limits, lead span and PCB data can be reviewed before final machine and feeder configuration.
Applicable components
Components We Can Handle
The supplied S3000 series manual identifies vertical tape-packaged components including the examples below. Component suitability must remain subject to package and PCB evaluation.
- Capacitors
- Resistors
- Transistors
- LEDs
- Fuses and fuse holders
- Connectors
- Coils
- Potentiometers
Actual production image showing the insertion area and a populated THT PCB.Feeding solutions
Flexible Feeding Solutions for Taped Components

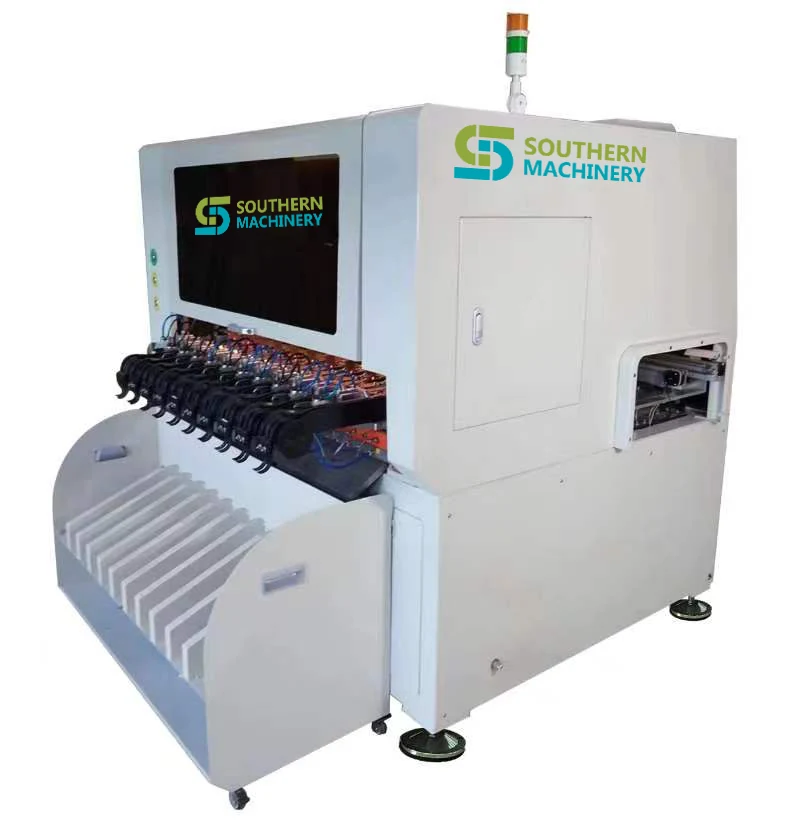

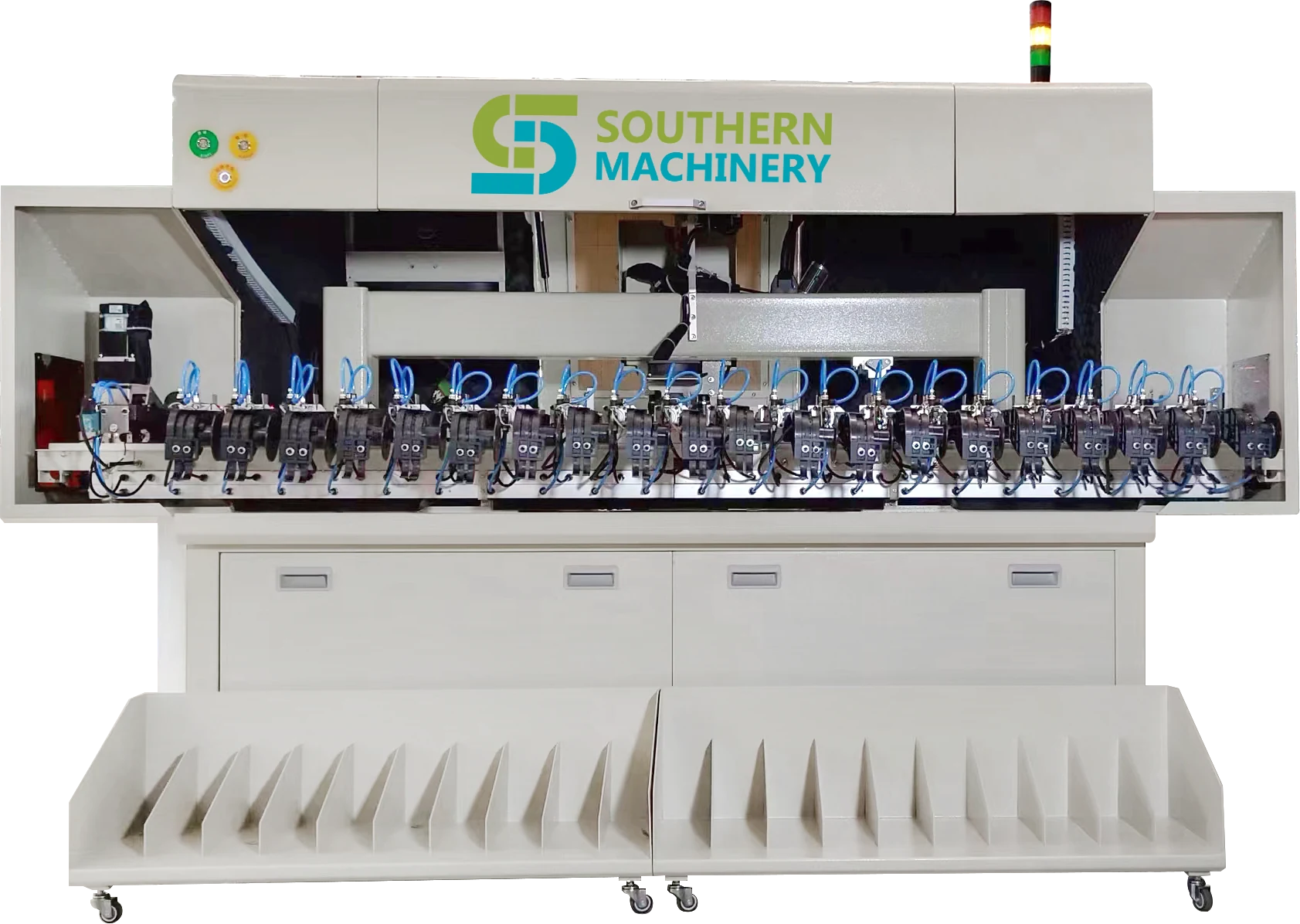

The supplied manual describes a feeder that separates taped components according to the insertion program and transfers them to the chain clips. It also notes compact and standard feeder choices according to customer need.
01
Review the package
Share a component photo, package style, dimensions and lead span for a technical check.
02
Select the feeder format
Compact or standard feeder options can be considered against the part and the production requirement.
03
Confirm the final configuration
Southern Machinery can recommend the appropriate machine and feeder arrangement after evaluation.
Technical data
S3000 Standard Specifications
Core values are reproduced from the supplied S3000 Radial Insertion Machine 2024 PDF, which was used as the primary specification source for this page.
Final performance and configuration should be confirmed after reviewing the actual component, packaging method, PCB layout and production target.
| Model | S3000 Radial Inserter |
|---|---|
| Insertion speed | 20,000 CPH (specification); 10,000 CPH (actual speed) |
| Available PCB size | 50 x 50 to 400 x 300 mm |
| PCB thickness | 0.79 to 2.36 mm |
| Lead span | 2.5 / 3.5 / 5.0 / 7.5 / 10.0 mm; dual, triple and quad span |
| Component limits | Max. height 20 mm; max. body diameter 13 mm; max. lead diameter 0.7 mm |
| Lead trimming length | 1.5 +/- 0.3 mm (short blade); 2.0 +/- 0.3 mm (long blade) |
| Lead bend angle | 10 to 15 degrees, adjustable |
| Feeder stations | 10 stations, recommended number of stations |
| Air source | 0.6 to 0.8 MPa |
| Power supply | 220 V, 50 Hz |
| Machine dimensions | 1700 x 1500 x 1600 mm (L x W x H) |
| Net weight | 880 kg |
CPH means components per hour. Listed values are the supplied standard data and do not replace project-specific confirmation.
Machine details
See the Working Assemblies
Close-up images from the supplied equipment set. Captions describe visible assemblies and the mechanisms named in the supplied manual.

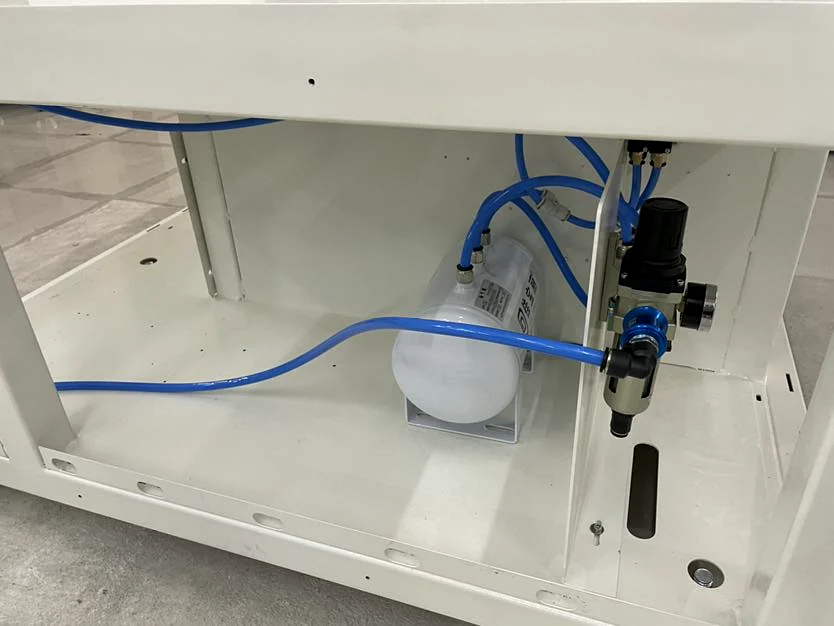

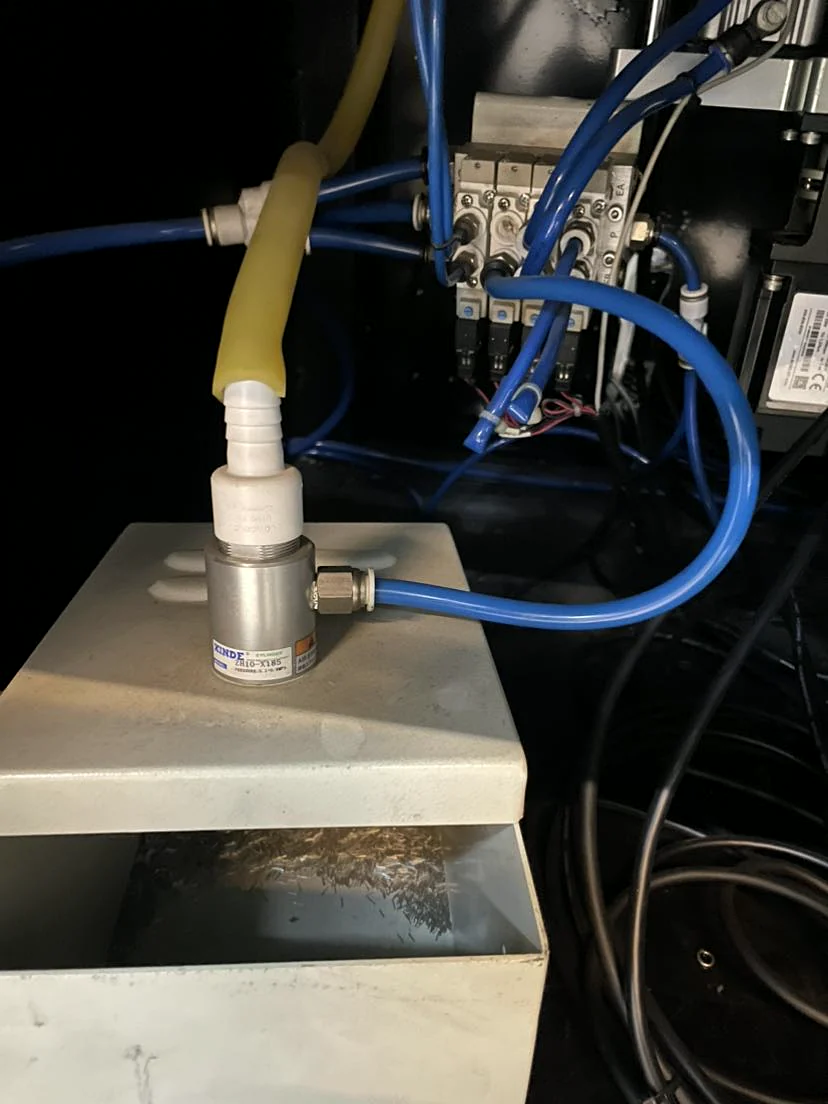

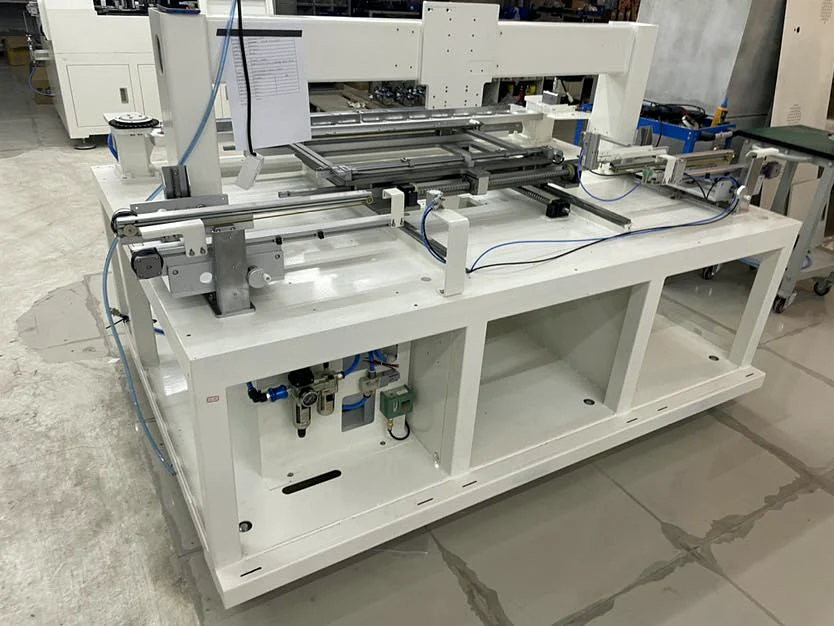

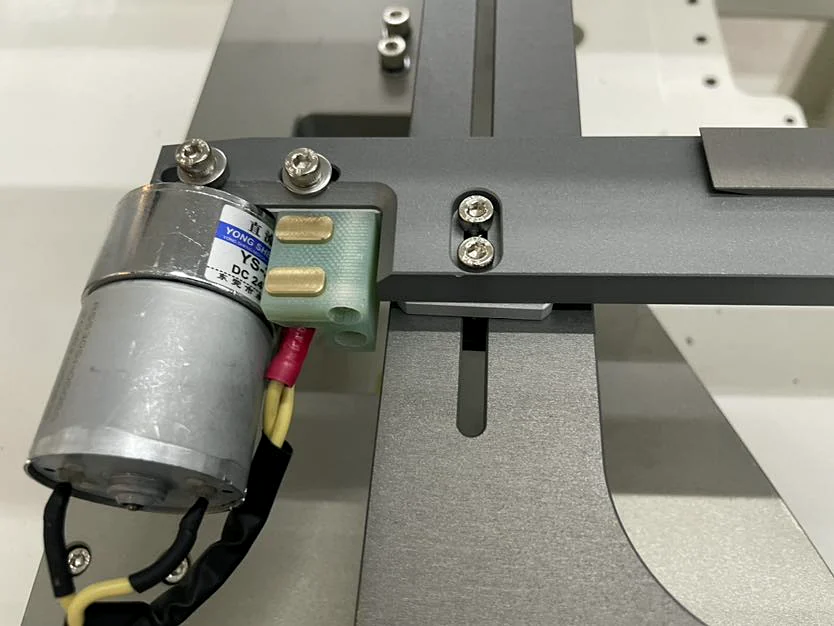

Applications
Radial THT Assembly Applications
The product materials identify the following board and production environments as potential S3000 applications.
Power conversion boards
LED drivers and lighting products
Home appliance controller boards
Air-conditioning and audio control boards
Set-top box and motherboard projects
High-mix PCB assembly environments
Southern Machinery support
From component review to line integration
The supplied product materials describe support for machine evaluation, installation and training, customized solutions and spare-parts service. The S3000 manual also describes PCB connection stations for sending boards into and out of the equipment.
- SMT and THT equipment supply
- Component insertion evaluation
- Feeder configuration review
- Component sample testing
- PCB handling and line integration
- Installation and technical support
- Spare-parts service
- Customized project solutions
Evaluation FAQ
Information Needed for an Insertion Evaluation
A practical review starts with the component and board data, rather than a general machine request alone.
What information should I send?
Please send a component photo, dimensions, packaging method, lead span, PCB file or board photo, and the required production target.
Can this machine handle my component?
The supplied manual lists several vertical tape-packaged component examples. Southern Machinery should evaluate the actual component, package and PCB before confirming suitability.
Can feeder configuration be discussed before purchase?
Yes. The supplied material describes compact and standard feeder choices. The recommended arrangement depends on the component and the planned production requirement.
Can the machine connect with a PCB line?
The product material describes existing-line integration and the manual describes PCB connection stations. Confirm the required line interface and board flow during project evaluation.
Inquiry
Need an Automatic Insertion Solution for Your Component?
Send your component photo, component dimensions, packaging method, PCB information and production requirement. Our team can evaluate a suitable insertion machine and feeding solution for your application.
