High positioning accuracy
Precise board positioning supports repeatable alignment with the V-cut path.
Automated PCB separation
SC-900 Multi-Blades V-Cut PCB Separator Machine
A modular multi-blades separator for V-cut PCB processing, combining automatic board feeding, adjustable speed and line-integration options for repeatable production.
SC-900 familyModular cutter platform
0.5-3 mmboard thickness
300-500mm/s board speed
50-300 mmboard width
200 Wequipment power
Source note: dimensions and technical values are transcribed from the supplied SC-900 product PDF. Confirm the final configuration before quotation.
Modular machine design
Choose the cutter configuration that matches your board flow.
The supplied product document shows a modular platform with one, two or three cutter sets. The listed configurations are SC-912, SC-924 and SC-936, allowing the cutting setup to be matched to the required separation process.
Automatic board feeding, adjustable speed and trigger-based line integration are designed to reduce repetitive manual handling.

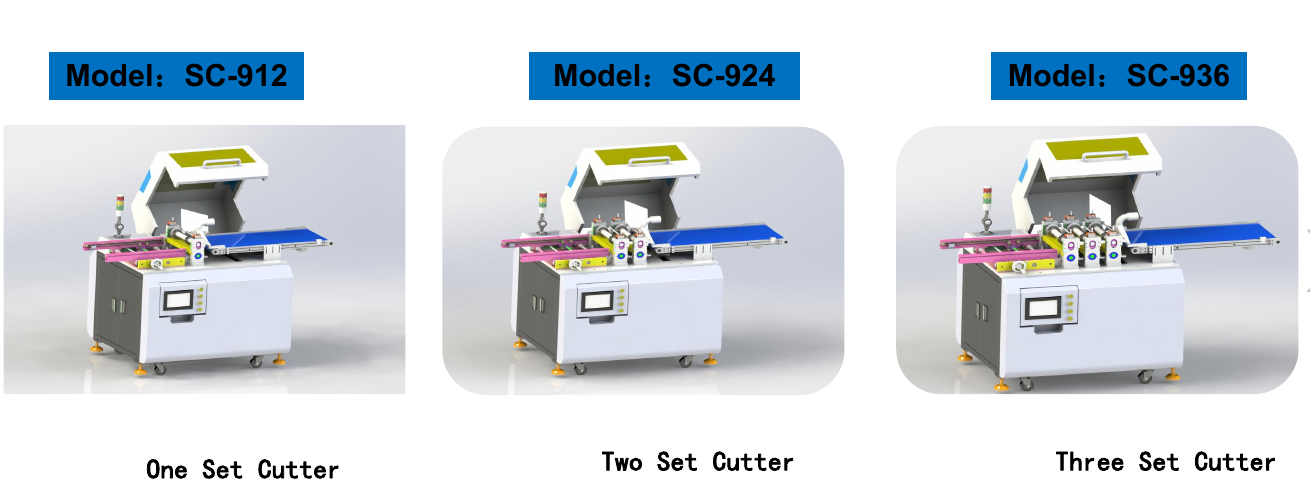

Modular cutter optionsOne-set, two-set and three-set cutter configurations shown in the supplied PDF.
Process advantages
Built around positioning, feeding and controlled cutting.
The feature list below follows the supplied machine material, translated into clear buyer-facing benefits.
Low cutting stress
The multi-blades process is specified for lower cutting stress during board separation.
Automatic feeding and cutting
Automatic board movement and cutting support a more consistent production rhythm.
Door-open protection
A door-open protection device is listed as part of the machine safety design.
SMEMA interface
SMEMA interface support helps connect the separator with compatible production-line equipment.
Upper and lower triggers
Trigger connections can support line signals and reduce manual board handling.
Technical highlights
Designed for a repeatable V-cut workflow.
The cutting assembly, adjustable board speed and line interfaces give production teams more control over different board formats and automation levels.
Variable-speed motor
Board speed listed at 300-500 mm/s, adjustable to the process requirement.
Board speed listed at 300-500 mm/s, adjustable to the process requirement.
Long board range
Board length listed from 50 mm to unlimited, subject to final machine setup.
Board length listed from 50 mm to unlimited, subject to final machine setup.
Compact line logic
SMEMA and trigger options help reduce manual transfers between equipment.
SMEMA and trigger options help reduce manual transfers between equipment.
Application fit
For V-cut PCB production lines that need stable flow.
Use the machine for V-cut board separation where board size, thickness and line connection match the listed range.
V-cut PCB
LED PCB
Aluminum PCB
FR-4 board
Panelized boards
Automated line integration
Machine images
See the machine, cutter and feeding path.
The following visuals are extracted from the supplied SC-900 product PDF.

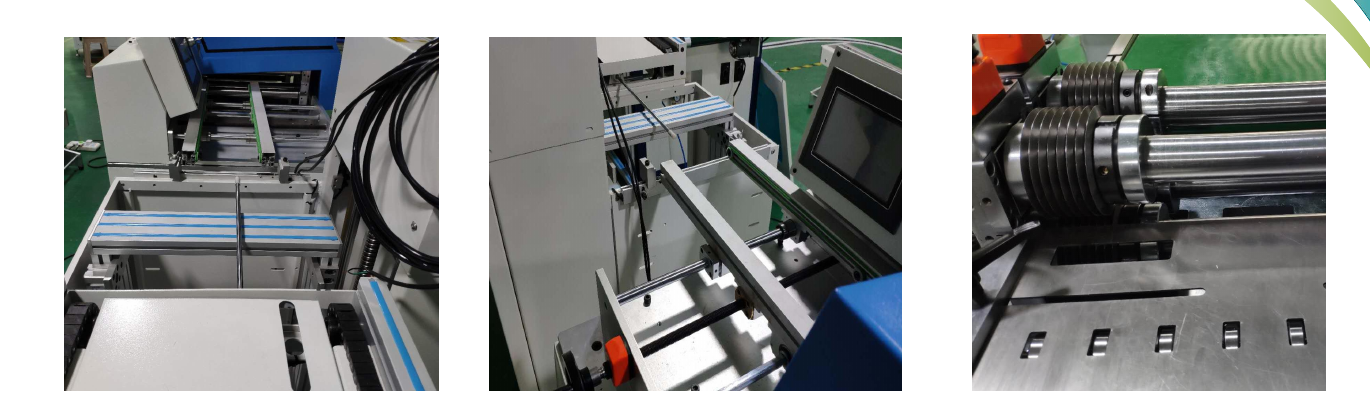

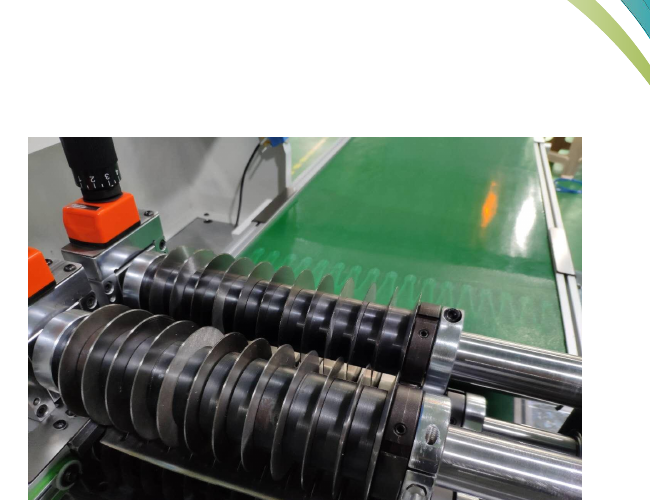

Feeding and cutting details
SMEMA interface, board feeding path and cutter close-up.

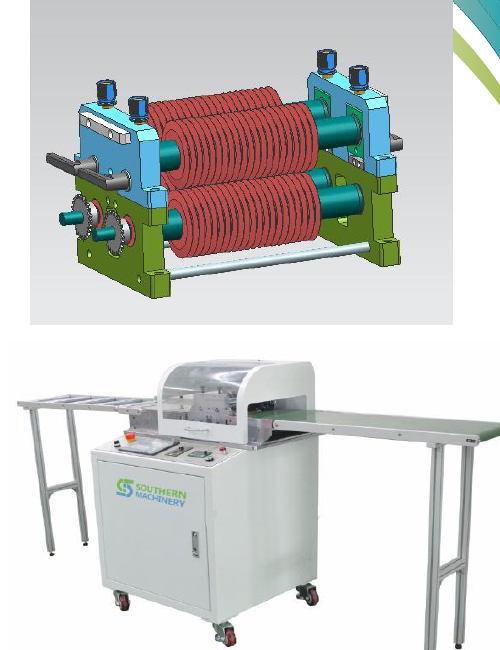

Cutter assembly and line setup
Illustrated cutter assembly and complete machine with conveyor tables.

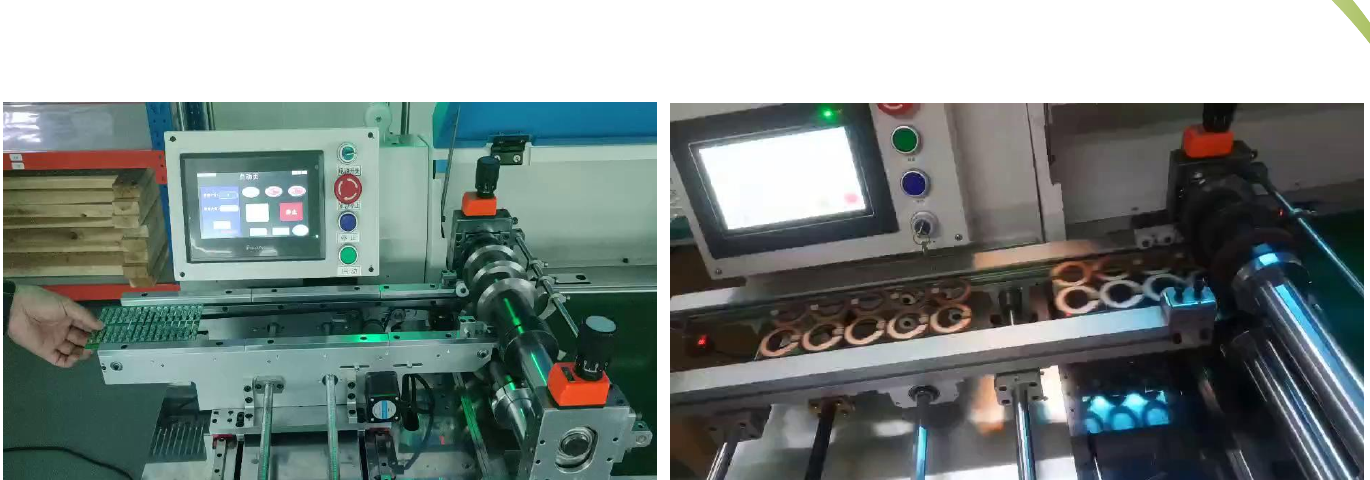

Working process
Machine control panel, board feeding and multi-blades separation in production.
YouTube working videos
Watch the SC-900 process in operation.
These three YouTube videos were supplied for this product page. Open them in YouTube if your browser blocks embedded playback.
Technical data
SC-900 specifications.
Values below are transcribed from the supplied PDF. The final quotation should confirm the selected modular configuration and line accessories.
The PDF lists working pressure as “0.5-0.8map”. It is presented here as 0.5-0.8 MPa for standard technical wording and should be confirmed with the final pneumatic configuration.
| Product | SC-900 Multi-Blades V-Cut PCB Separator Machine |
|---|---|
| Modular configurations shown | SC-912, SC-924 and SC-936 |
| Machine dimensions (L/W/H) | 1850 x 900 x 1100 mm |
| Blade size | Round blade phi 80 mm x phi 35 mm x 3 mm |
| Blade material | Imported high-quality high-speed steel, SKD11 |
| Blade brand | Chuan Yi |
| Board thickness | 0.5-3 mm; V-cut depth is one third of board thickness |
| Blade life | About 3 million times |
| Board length | 50 mm to unlimited, as listed |
| Board speed | 300-500 mm/s; variable-speed motor, adjustable speed |
| Board width | 50-300 mm |
| Working pressure | 0.5-0.8 MPa, normalized from the source PDF wording |
| Working voltage | 220V / 110V optional |
| Equipment power | 200 W |
| Total weight | About 160 kg |
| Line interface | SMEMA interface; upper and lower trigger connection listed |
Questions before RFQ
What should be confirmed?
A short checklist helps match the modular machine configuration to your board and line.
Which configurations are available?
The supplied PDF shows SC-912, SC-924 and SC-936 as one-set, two-set and three-set cutter configurations.
What board range is listed?
Board thickness is listed as 0.5-3 mm, board width as 50-300 mm and board length from 50 mm to unlimited.
Can it connect to an existing line?
The document lists SMEMA interface support and upper/lower trigger connection. Confirm the exact upstream and downstream equipment before order.
Is the speed adjustable?
Yes. The supplied specification lists a variable-speed motor with board speed of 300-500 mm/s.
What should I send for a machine review?
Send board thickness, width, longest board length, V-cut depth, panel format, target speed and line interface information.
Can you test my PCB?
Include a board sample or clear drawings with the RFQ so the cutter configuration and feeding setup can be reviewed.
Prepare the next step
Send your board size and line target for a configuration recommendation.
Include the PCB material, thickness, width, length, V-cut drawing, required speed and whether SMEMA or trigger signals are needed.
